- Place of Origin: zhengzhou
- Brand Name: tianzheng
- Model Number: TZ-GX-30W
Character:

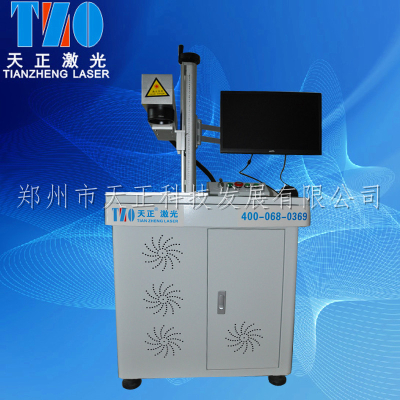

Fiber laser marker, very flexible and is easilyintegrated into industrial production processing. it can operate laser directlyby controlling interface (USB) , no supplies, and products' depreciation costsare greatly reduced. By comparison it has performances including highefficiency, long life and maintenance-free. This also includes the notebookcomputer preloaded with software for controlling the laser.
Advantage:
1. High-definition: The resolution is measuredby micron; It is two times clearer than a traditional machine.
2. Less power consumption
3. High-speed: The speed is three to five times faster than traditionalmachines.
4. Stability: The stability of machine is much better than similar counterpart
- Place of Origin: zhengzhou
- Brand Name: tianzheng
- Model Number: TZ-GX-30W
Parameter:
Item Name | Fiber Laser Marking Machine |
Item No. | TZ-GX-30W |
laser power | 30W |
laser wavelength | 1064nm |
light beam quality M2 | <1.5 |
Repeating Frequency | <100KHz |
standard marking area | 110mm*110mm |
optional marking area | 50mm*50mm--150mm*150mm |
marking depth | ≤1.2mm |
marking line speed | ≤12000mm/s |
min line width | 0.1mm |
min character | 0.5mm |
repeating precision | ±0.001mm |
integrity power | 500W |
Operating Voltage | 220V/single phase/50Hz/10A |
cooling method | air cooling |
Operation system | win 7/win xp |
