- Place of Origin: zhengzhou
- Brand Name: tianzheng
- Model Number: TZ-GX
Character:
The machine speed is fast, with high-speed galvanometer; small volume, light weight; no consumables, low power consumption. And the power consumption is less than 500W; fully air-cooled, do not need to water cooling machine, reduce energy consumption; the machine not influenced by bad environment and climate change. it can use battery or car cigarette lighter work if the power off.It can reduce the products depreciation costs greatly, meet customer volume, stable production.
The machine is made up of IPG/Raycus laser generator, which can be used for 100000 hours.
- Place of Origin: zhengzhou
- Brand Name: tianzheng
- Model Number: TZ-GX
Parameter:

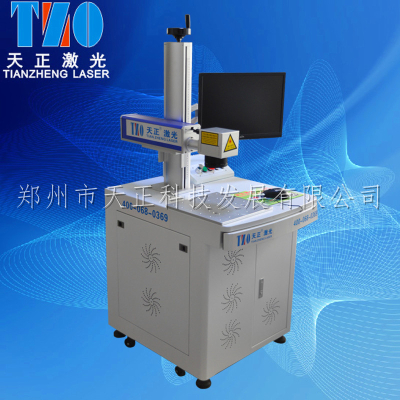

Item Name | fiber laser marking machine |
Item No. | TZ-GX-10W |
laser power | 10W |
laser wavelength | 1064nm |
light beam quality M2 | <1.5 |
Repeating Frequency | <100KHz |
standard marking area | 110mm*110mm |
optional marking area | 50mm*50mm--150mm*150mm |
marking depth | ≤1.2mm |
marking line speed | ≤12000mm/s |
min line width | 0.1mm |
min character | 0.5mm |
repeating precision | ±0.001mm |
intergrity power | 500W |
Operating Voltage | 220V/single phase/50Hz/10A |
cooling method | air cooling |
Operation system | Win7 / win xp |
